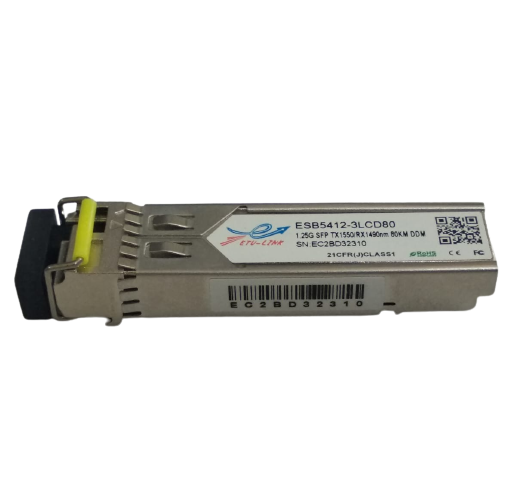

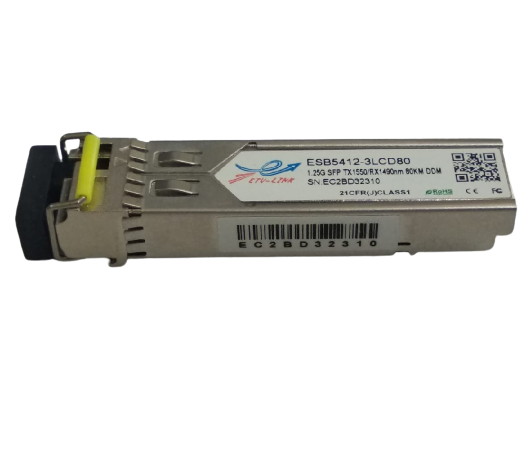

Name: SFP MODULES (1.25G SFP BID TX1550/RX1490nm 80KM DDM)
SKU: 609
Availability: InStock

SFP MODULES (1.25G SFP BID TX1550/RX1490nm 80KM DDM)

₹1,200.00

FEATURES:

1.25Gbps SFP Bi-Directional Transceiver, 80KM Reach Tx1550nm/Rx1490nm
 Dual data-rate of 1.25Gbps/1.063Gbps operation
 1550nm DFB laser and PIN photodetector for 80KM transmission
 Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
 Digital Diagnostic Monitoring:
Internal Calibration or External Calibration
 Compatible with SONET OC-24-LR-1
 Compatible with RoHS
 +3.3V single power supply
 Operating case temperature range:
0 °C to +70 °C (Commercial)
-40 °C C to +85 °C (Industrial)

Applications:
 Gigabit Ethernet
 Fiber Channel
 Switch to Switch interface
 Switched backplane applications
 Router/Server interface
 Other optical transmission system

The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of
1.25Gbps/1.0625Gbps and 80KM transmission distance with SMF.

The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a
trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requiremen

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further
information, please refer to SFP MSA
