Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing
Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE STD 802.3 and 1x Fibre
Channel as defined in FC-PI-2 Rev. 10.0 .They are RoHS compliant and lead-free.
Media Converter, SFP Modules, Wireless Systems

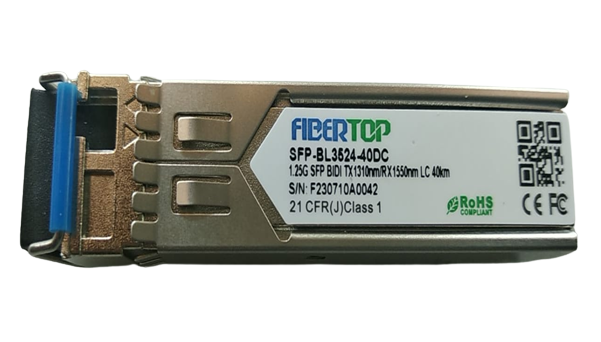

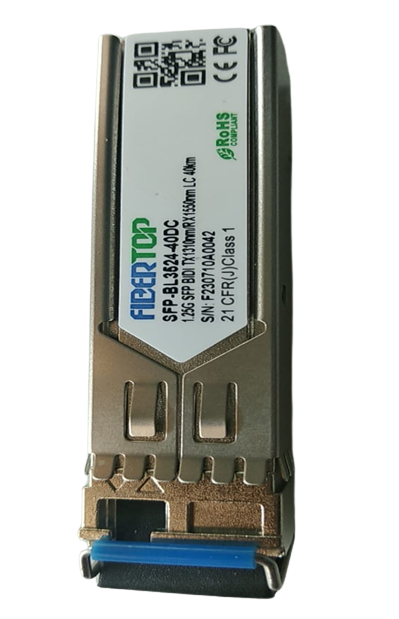

SFP MODULES (SFP-BL3524-40 DC) ( 1.25G SFP BIDI TX 1310nm/RX 1550nm LC DDM 40km)
₹800.00
PRODUCT FEATURES :
- Single LC receptacle optical interface compliant
- Hot-pluggable SFP footprint
- 1310nm FP laser transmitter ; 1550nm DFB laser transmitter
- 1310nm FP laser transmitter；1490nm DFB laser transmitter
- RoHS compliant and Lead Free
- Up to 40km on 9/125um SMF
- Metal enclosure for lower EMI
- Single 3.3V power supply
- Low power dissipation <600mW
- Commercial operating temperature range: 0°C to 70°C
APPLICATIONS :
Gigabit Ethernet
1.06 Gb/s Fibre Channel
| IV. Optical Characteristics (TOP=25°C, Vcc=3.3 Volts) | |||||||
| Parameter | Symbol | Min | Typ | Max | Unit | Ref. | |
| Transmitter | |||||||
| Output Opt. Power | PO | -2 | – | +3 | dBm | 1 | |
| Optical Wavelength | λ | 1290 | 1310 | 1330 | nm | 2 | |
| Spectral Width | σ | – | – | 1 | nm | 2 | |
| Optical Rise/Fall Time | tr/tf | – | 170 | 260 | ps | 4 | |
| Deterministic Jitter Contribution | TXΔDJ | – | 20 | 56.5 | ps | 5 | |
| Total Jitter Contribution | TXΔTJ | – | 50 | 119 | ps | ||
| Optical Extinction Ratio | ER | 9 | – | – | dB | ||
| Receiver | |||||||
| Average Rx Sensitivity @ 1.25 Gb/s(Gigabit Ethernet) | RSENS2 | – | – | -25 | dBm | 6, 7 | |
| Average Rx Sensitivity @ 1.06 Gb/s(1X Fibre Channel) | RSENS1 | – | – | -25 | dBm | 6, 7 | |
| Maximum Received Power | RXMAX | 0 | dBm | ||||
| Optical Center Wavelength | λC | 1470 | 1490 | 1510 | nm | ||
| LOS De-Assert | LOSD | – | – | -25 | dBm | ||
| LOS Assert | LOSA | -36 | – | – | dBm | ||
| LOS Hysteresis | 0.5 | – | – | dB | |||
